Drill jigs for PedalPCB 125B builds

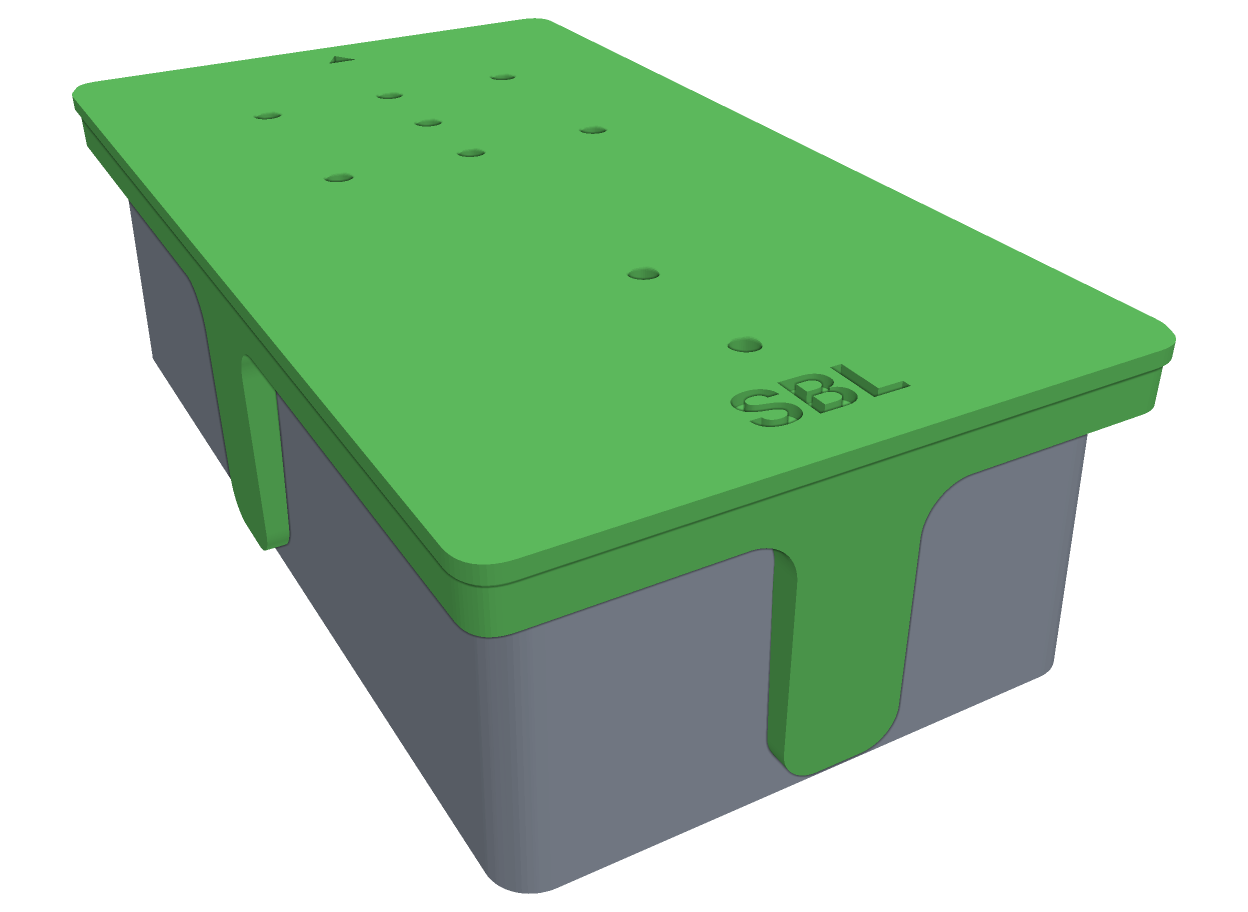

Two jigs you print yourself, covering all 252 PCBs between them. Sit one on the enclosure, punch the holes your build needs, then lift it off and drill.

Get both jigs, $12 → Find your PCB

You need a 3D printer. Built for the Hammond 125B.

What you get

2

STL files

Jig A and jig B, ready to slice. No supports, any filament.

2

PDF guides

One PDF per jig, with a page for each layout showing which holes to punch.

Read them now Jig A Jig B
1

Read me

The settings to print at, how to use the jig, and what to check if a mark comes out faint.

Why not just the paper template?

PedalPCB publish a paper template for every PCB, and it works. This is the same positions in something rigid: nothing to print to scale, nothing to tape down, nothing to slip halfway through. It is sized to grip the enclosure's sloping walls, so it settles into place on its own and stays put while you punch. It marks the side faces as well, so the jacks and the DC socket line up with the top face instead of being measured separately.

You punch a mark through it and take it off before you drill, so it marks the same way on the hundredth enclosure as it did on the first.

Find your PCB

Different layouts put the pots in different places, so there are two jigs. Both are in the download, so this tells you which file to open, not which to buy.
