Azimuth Dynamic Overdrive Drill Template
Aion FX · 125B
Template details
- Circuit
- Azimuth Dynamic Overdrive
- Vendor
- Aion FX
- Enclosure
- Hammond 125B
- Dimensions
- 63.7 × 119.4 × 35.8 mm
- Layout
- 125B 4-Knob w/ Battery
- Category
- Overdrive
Export formats
- PDF: print at 1:1 scale
- SVG: vector graphic
About this drill template

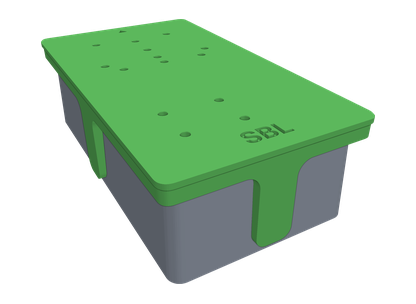

Drill template for the Aion FX Azimuth Dynamic Overdrive, sized for a Hammond 125B enclosure (63.7 × 119.4 × 35.8 mm). The pre-positioned holes match the PCB's pot footprint exactly, with the footswitch centred below the 4-knob layout. Print at 1:1 scale, tape to the enclosure face, centre-punch, and drill. PCB and parts not included.
Aion FX description: “Based on the Hermida Zendrive. A favorite of blues guitarists and anyone looking to replicate the tone of the legendary Dumble amplifiers.”
Drill measurements
Hole centres for the 125B 4-Knob w/ Battery layout. X runs left to right from the centre of the face being drilled. On the enclosure face, Y is measured from the centre, positive towards the top. For holes on a side, Y is the distance down the wall, measured from the face edge. Export the PDF for a 1:1 printable version with a scale check.
| Hole | Face | X (mm) | Y (mm) | Diameter |
|---|---|---|---|---|
| Pot | Enclosure face | -16.4 | 43.4 | 7 mm (0.28 in) |
| Pot | Enclosure face | 16.5 | 43.4 | 7 mm (0.28 in) |
| Pot | Enclosure face | -16.4 | 10.4 | 7 mm (0.28 in) |
| Pot | Enclosure face | 16.5 | 10.4 | 7 mm (0.28 in) |
| LED bezel | Enclosure face | -19.7 | -30.5 | 8 mm (0.31 in) |
| Footswitch | Enclosure face | 0 | -30.5 | 12 mm (0.47 in) |
| Jack | Top side | -16 | 24.8 | 9.5 mm (0.37 in) |
| DC Jack | Top side | 0 | 24.8 | 12 mm (0.47 in) |
| Jack | Top side | 16.1 | 24.8 | 9.5 mm (0.37 in) |
